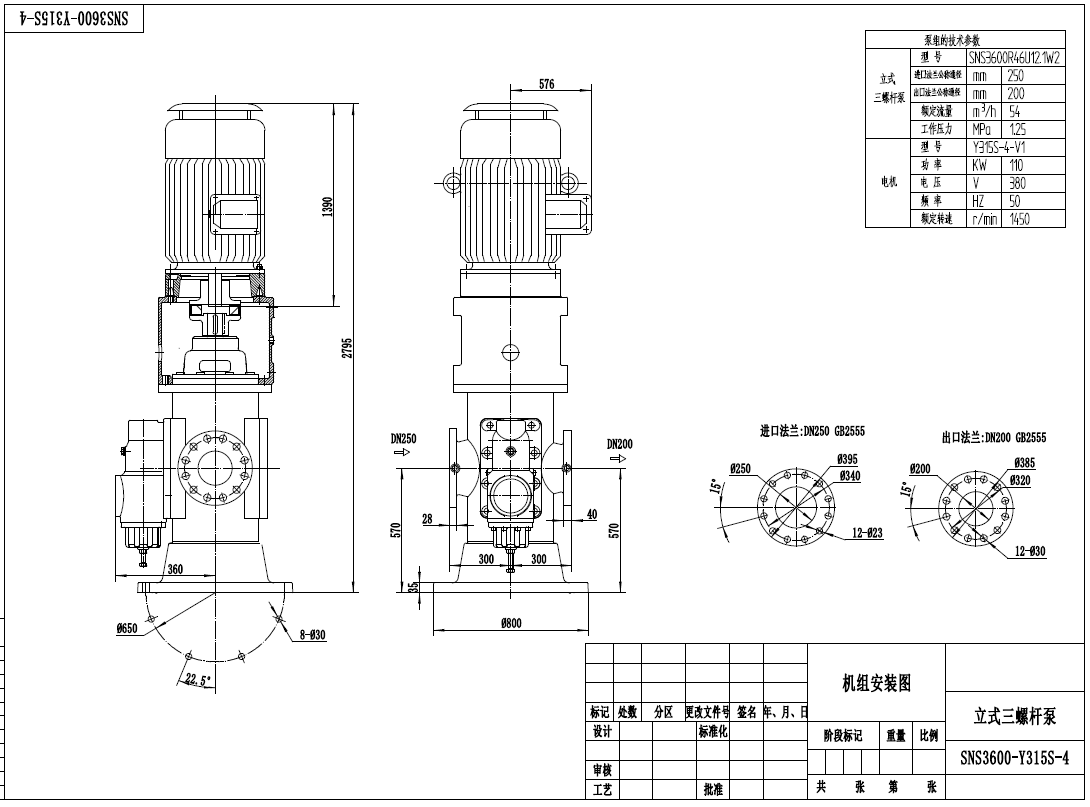

SNS3600R46U12.1W2立式三螺桿泵整機尺寸圖,該泵進口尺寸250mm,出口尺寸200mm,額定流量:54m3/h,工作壓力:1.25Mpa,配用電機功率110kw,電機轉速1450r/min.

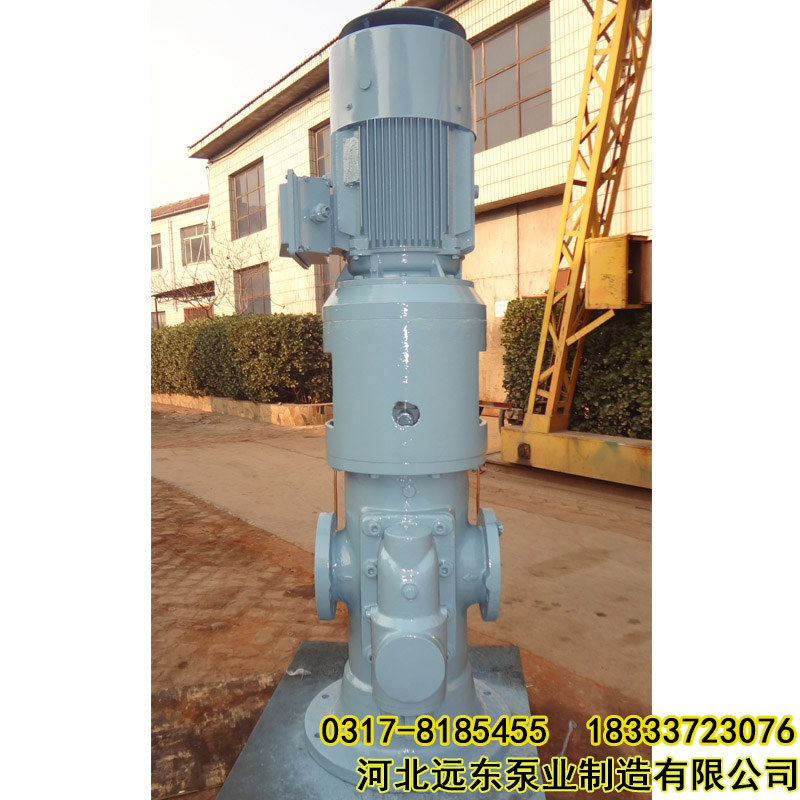

SNS3600R46U12.1W2立式三螺桿泵產品圖片:
外觀形式不同,立式泵是立著的而臥式泵是橫臥著. Different form appearance, vertical pump is standing and horizontal pump is lying.
連接形式不同,立式泵自下而上疊加連接,臥式泵縱向排列于底座上，立式泵通稱管道泵，電機與泵體是子口連接；臥式泵是采用聯軸器與電機連接，需要定期找正。 Superposition of different connection forms, the vertical pump bottom-up connection, horizontal pump vertically on the base, known as vertical pump pipeline pump, motor and pump body is seam allowance;Horizontal pump is connected by shaft coupling and motor, need to find is on a regular basis.
占地空間不同,立式泵占地面積小而臥式泵占用面積大.。立式泵組的占地比臥式泵小，不一定要打基礎；臥式泵組設有底座，要打基礎。 Covers an area of space is different, the vertical pump area small and horizontal pump takes up the area is large..Vertical pump group covers an area of smaller than horizontal pump, doesn't have to lay the foundation;Horizontal pump group has a base, to lay the foundation.
維修難度不同,立式泵檢修難度大,如檢修葉輪需將上部全部移去后方能進行;而臥式泵相對容易,如IS型泵只要將進口管移去就能進行葉輪檢修. Maintenance difficulty is different, vertical pump maintenance is difficult, such as repair impeller should be the upper can all move to the rear;Horizontal pump easier, such as IS as long as the move imported tube type pump impeller repair can go.
安裝形式不同,立式泵為整體連接,安裝較易;而臥式泵安裝后需進行精度調整. Different forms of installation, the vertical pump connection, for whole installation easier;But it's necessary for horizontal pump installed precision adjustment.
臥式泵從經濟上來說比立式泵具有優勢.Horizontal pump economically than the vertical pump.
河北遠東泵業制造有限公司銷售業績:
用途 型號 公司名稱
輸送108膠泵 NYP110-RU-M1-W51高粘度泵 江蘇康泰氟有限公司
高粘度液體齒輪泵 NYP110-RU-T1-J-W11高粘度泵 方大錦化科技股份有限公司
高粘度液體泵 NYP220B-LR-M1-W51高粘度泵 河北陽煤正元集團股份有限公司
輸送聚醚泵 NYP220B-RU-T1-J-W12高粘度泵 帝人聚碳酸脂有限公司
聚醚輸送泵 NYP220B高粘度泵 甘肅金昌工業集團有限公司
硅酮膠輸送泵 YCB20齒輪泵 華能南通電廠
輸送燃料油泵 3GCLS100*2W2三螺桿泵 南通港閘船舶制造有限公司
輕柴油供油泵 3GCL85*2W2三螺桿泵 青島現代造船有限公司
輸送原油泵 3GCL70*2W2三螺桿泵 臨海市江海造船有限公司
燃油滑油污油泵 3GCL110*2W21三螺桿泵 華能威海電廠
主機滑油泵 3GR25*4W2三螺桿泵 浙江宏信船舶有限公司
電動螺桿泵 3GR25*4W2三螺桿泵 華能南京電廠
滑油輸送泵 3GR110*4W21三螺桿泵 華能南通電廠
高粘度液體泵 G50-1V-W102單螺桿泵 江蘇金桐工業有限公司
污油回收泵 3GR25*6w21三螺桿泵 當陽市華強有限公司
焦油輸送泵 3GR25*6W2三螺桿泵 朝陽浪馬輪胎有限責任公司
重油裝船泵 3GR25*6W2三螺桿泵 陵縣綠源有限責任公司
稠油輸送泵 3GR25*6W2三螺桿泵 重慶長壽有限責任公司
輸送涂料泵 G35-1V-W111單螺桿泵 貴州久聯民爆器材發展股份有限公司
輸送棕櫚油泵 3GR42*6AW2三螺桿泵 江蘇安邦電化有限公司
輸送原油泵 3GCL70*2W2三螺桿泵 臨海市江海造船有限公司
聚氨酯供料泵 NYP-7-RU-M1-W61高粘度泵 青島黃海橡膠集團有限責任公司
污泥回流泵 G85-1P-W101單螺桿泵 煙臺立衡環?？萍加邢薰?
輸送聚氨酯粘接劑泵 NYP220B高粘度泵 上海寶鋼有限公司
